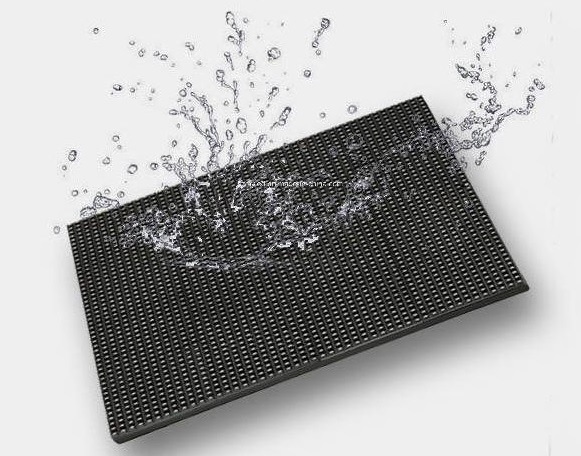

High Refresh P2.5 160x160mm Indoor Full Color LED Screen For Advertising

Product Categories
Shenzhen Dehao Optoelectronic Technology Co.Ltd
Contact Now

High Refresh P2.5 160x160mm Indoor Full Color LED Screen For Advertising

Brand Name : Yuto

Model Number : P2.5

Certification : CE ROHS FCC

Place of Origin : Shenzhen,China

Payment Terms : Western Union, MoneyGram, T/T, L/C

Delivery Time : 15-20 working days after payment

Packaging Details : Standard wooden case or flight case packing as customer's request

MOQ : 1 square meter

Price : Negotiation

Pitch : 2.5mm

Density : 160000 dot/㎡

Module size : 160x160mm

Module resolution : 64x64 dot

LED standard : SMD2121

Brightness : ≥1200 cd/sqm

Viewing distance : 2-20m

Warranty period : 2 years

Contact Now

High Refresh P2.5 160x160mm Indoor Full Color LED Display For Advertising,Events.

Product Description

Technical Parameter
LED Light Parameter
LED LED brand LED type wave Length(nm) Average Brightness
(mcd)		 Test Condition
Red(R) Sanan SMD
2121		 615-625nm 150-300mcd 25ºC,20mA
Green(G) Huacan 515-535nm 350-550mcd 25ºC,10mA
Blue(B) Huacan 465-475nm 50-85mcd 25ºC,5mA

Pixel/Module

No Item Parameter
1 Pixel Pitch 4.81mm
2 Pixel Configuration 1R1G1B / R:G:B=3:6:1
3 LED Lamp Full color
4 Density 43264dot/m2
5 Module Size 250*250mm
6 Module Pixel 52*52=2704dot
7 Module Thickness 15mm
8 Module Weight 690g
9 Module Power ≤48.5W
10 Drive Valtage DC5V
11 Module Electric Current 9.7A
12 PortType HUB-75D/B


Screen Parameters

No Item Parameter
1 Standard Cabinet Size 500mm*500mm*75mm/1000x1000x75mm
2 Cabinet Weight 5.5KG/13.75KGS
3 Brightness/Adjustment ≥4600cd/m², Level 16- Automatic / Level 100-Manual operation
4 View Angle ≥120°(Vertical),≥120°(Horizontal)
5 Best View Distance 5-15m
6 Grey Scale Within 65536 Step
7 Frame Frequency ≥60Hz
8 Refresh Rate ≥720Hz
9 Signal Input Source Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI
10 Scan Mode 1/13Scan
11 Drive IC 5020
12 Module Qty / M2 16
13 Display Color Qty 16777216
14 Continuous Working Time >24(Hrs)
15 Screen Lifespan >100,000(Hrs)
16 MTBF >5000(Hrs)
17 Max. power consumption 800W/m2
18 Ave. power consumption 240W/m2
19 Out of control pixel rate ≥3/10,000(discrete distribution)
20 Control Distance 100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)
21 Flatness Screen Surface≤0.5mm,Pixel Pitch≤0.3mm
22 Operation Temperature -10ºC~+50ºC
23 Working Humidity 10%~98%RH
24 Storage Temperature -40ºC~+85ºC
25 Software Connection Standard Computer Connection,Compatiable WithWindows,Unix,Novell
26 protection system Over temperature/overload/power/image compensation/nonlinear correction
27 Working Valtage 200~240 V
28 Dielectric Strength 50HZ/1500V(AC RMS)/1min
29 Temperature Rise Metal≤40K,Insulation≤65K , After Heat Balance
30 IP Grade IP65
31 Computer display mode 1024*768
33 Media Player LED Professional Media Player


Die Casting Aluminum Cabinet
Application Range:indoor or outdoor rental business, support hanging
Structure:with back door,cooling fan,small position guiding pillar,side locks,
and hanging design,precision die-casting cabinet suit for fix installation and rental projects,
light weighted, fast assemble and easy maintenance,most use in rental business.

High Refresh P2.5 160x160mm Indoor Full Color LED Screen For Advertising
High Refresh P2.5 160x160mm Indoor Full Color LED Screen For Advertising
